Introduction
A single design flaw in a welded joint doesn't just cause one bad part. It causes warping, weak joints, or costly rework across dozens or hundreds of parts once a project reaches production.
Design for Manufacturability (DFM) for welded assemblies is the practice of engineering parts so they can be welded efficiently, accurately, and cost-effectively before fabrication ever begins. Get it right on paper, and the shop floor runs smoothly. Get it wrong, and every part downstream inherits the problem.
This guide covers what DFM means for welded assemblies, the core principles behind manufacturable designs, and a step-by-step approach you can apply today. It also explains how partnering with an experienced fabricator like Victory Industrial Construction helps you avoid expensive redesigns.
Key Takeaways
- DFM addresses welding realities such as heat, access, and distortion from day one
- Weld type, thickness, and joint geometry choices drive major cost swings at scale
- Bringing in a fabricator early catches issues while changes remain cheap
- Distortion, over-tolerancing, and poor weld access cause most production rework
What Is Design for Manufacturability (DFM) in Welded Assemblies?
DFM in welding means designing joints, geometry, and material choices so they can be welded consistently, safely, and economically using standard shop processes and tooling. It's the bridge between an engineer's drawing and a welder's torch.
Welded assemblies need more DFM scrutiny than most other joining methods for one simple reason: welding is permanent and heat-intensive. Unlike a bolted or adhesive joint, you can't easily back out of a bad weld. Cutting one out, re-fitting parts, and re-welding costs far more time and money than fixing a fastener.
There's also a critical distinction most engineers miss:
| Question | What It Really Asks |
|---|---|
| "Can this be welded?" | A yes/no check on whether the joint is physically weldable |
| "Can it be welded efficiently and repeatably at scale?" | The real DFM question, factoring in access, fixturing, heat control, and consistency across hundreds of units |
Standards bodies reinforce this split. AWS D14.0 explicitly separates Design Authority, Manufacturing Authority, and Inspection Authority roles in machinery weldments, a clear signal that manufacturability isn't just an engineering call. It requires input from the people who'll actually run the weld.
A design can pass every strength calculation and still be a nightmare to produce. That gap is exactly what DFM closes.
Core DFM Principles for Welded Assemblies
These are the practical checks engineers and designers should run before finalizing any welded assembly drawing. Skip them, and you're gambling with production costs.
Joint Design, Geometry, and Weld Accessibility
Welding tools need room to work. A torch, electrode, or welder's hands must physically reach every seam at the correct angle, because electrode angle directly affects weld penetration. A joint that looks fine in a 3D model can be impossible to weld once real tooling and body positioning enter the picture.
Practical fixes designers can specify:
- Tabs and slots that self-locate parts and remove guesswork during assembly
- Cleco holes for temporary fastening before final welding, reducing dependence on custom fixtures
- Generous clearance zones around joints for torch angle and electrode reach, especially in tight or nested assemblies
Skipping this step is one of the fastest ways to end up with a redesign request from the shop floor.
Material Selection and Thickness Consistency
Mismatched material thickness at a joint is a common, avoidable problem. Thin sections heat up and can burn through long before a thicker adjoining section reaches welding temperature. That mismatch forces welders to compensate mid-weld, which hurts consistency.
Material choice matters just as much:
- Carbon steel is generally forgiving and predictable across thickness ranges
- Stainless steel requires more attention to heat input to avoid warping and discoloration
- Aluminum is the most distortion-prone: high thermal conductivity and a low melting point cause fast burn-through, demanding dedicated procedures instead of steel habits
Victory Industrial Construction works with all three materials daily, and the pattern holds across any shop: matching process and technique to material properties, not just joint geometry, has to happen at the design stage.
Choosing the Right Weld Type and Process
Not every joint needs a continuous seam weld. Forming, mechanical fastening, or spot welding can often replace full welding when a permanent, full-strength joint isn't structurally required, cutting both labor and material cost.

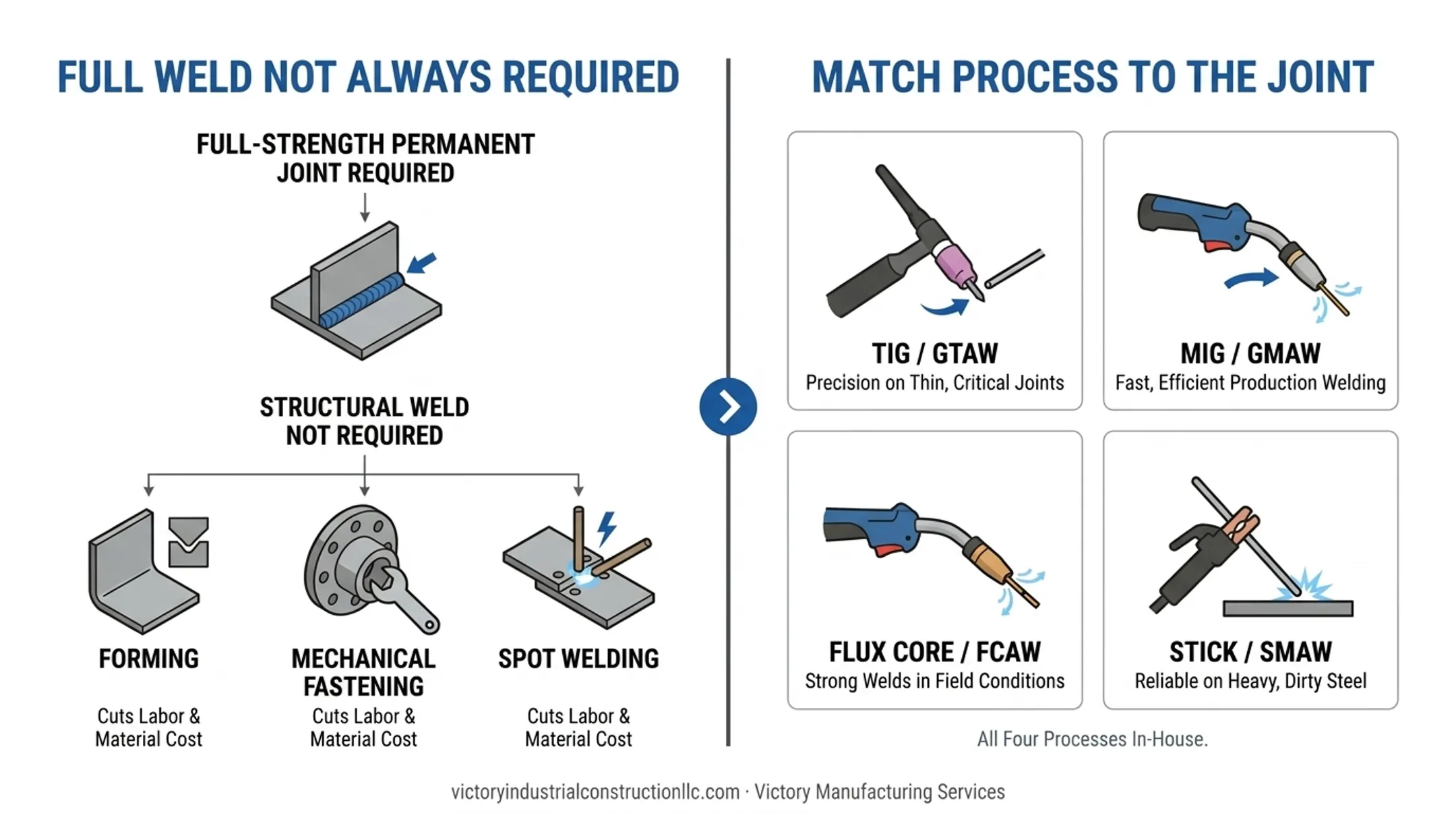

When welding is the right call, process selection changes the manufacturability equation:
| Process | Strengths | Best Fit |
|---|---|---|
| MIG/GMAW | Fast, easier to run, good on thicker sheet | Production runs, speed-priority work |
| TIG/GTAW | Precise, clean, better heat control | Thin material, appearance-critical joints |
| Stick/SMAW | Portable, works in adverse field conditions | On-site or outdoor welding |
| Flux Core/FCAW | High deposition rate | Thick structural fabrication, field joints |
Shops that run all four processes in-house, as Victory Industrial Construction does, can match the process to the joint instead of forcing one method to handle whatever the shop happens to have on hand.
Minimizing Heat-Induced Distortion
Weld size drives distortion. A longitudinal weld running the length of a structural beam often adds little load capacity relative to the warping risk it introduces. Lincoln Electric's weld distortion guidance recommends specifying the smallest weld permitted by the design rather than overwelding by default.
Designers can specify these distortion controls directly on the drawing:
- Use intermittent or skip welding instead of full continuous welds where the design allows it
- Minimize the number of passes to limit heat cycling
- Balance weld placement around the assembly's neutral axis
- Preset joints to counteract anticipated shrinkage before welding starts
One reported case of vibratory weld conditioning prevented 85% of normal distortion and eliminated the need for straightening afterward. That's the scale of savings available when distortion gets addressed at the drawing stage instead of the shop floor.
Setting Practical Tolerances
Over-tolerancing is one of the most common (and expensive) DFM mistakes. Standard shop tolerance, commonly around ±0.125 inches, is achievable without special fixturing. Tighter tolerances demand extra fixturing, inspection, and lead time, and AISC's Code of Standard Practice makes clear that fabrication tolerances are condition-specific, not a blanket default.
A related trap: cosmetic weld grinding. Unless aesthetics are a hard requirement, prioritize structural function over appearance. Grinding adds labor cost and can actually weaken a sound weld.
How to Design for Manufacturability: A Step-by-Step Approach

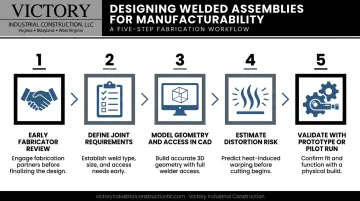

Follow these five steps before drawings get locked, not after.

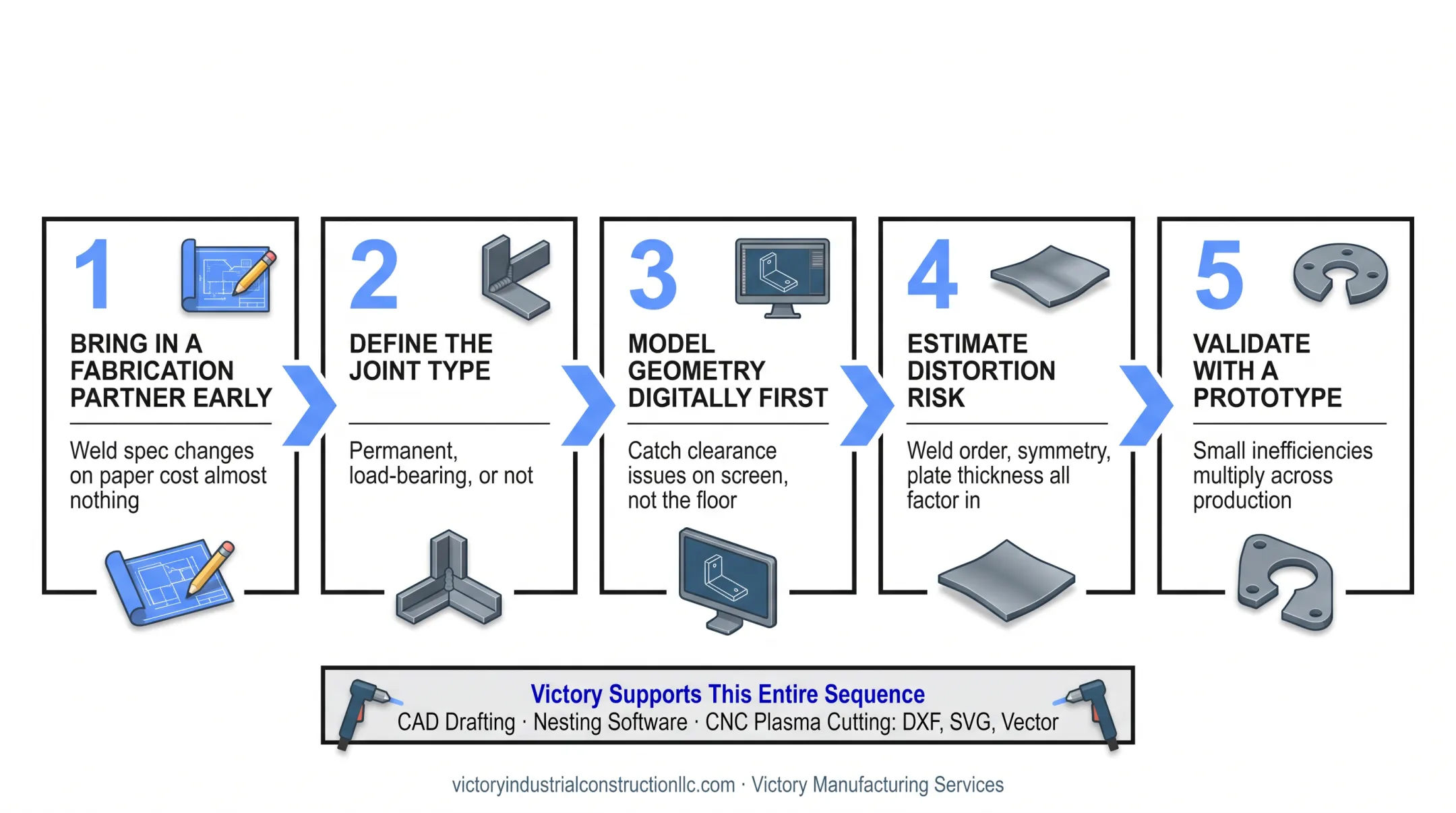

- Bring a fabrication partner into early design review. Adjusting weld specs on paper costs almost nothing. Adjusting them after tooling is set costs real money.
- Define whether the joint needs to be permanent and load-bearing. This single question determines whether welding is even the right method versus fasteners or adhesives.
- Model joint geometry and access digitally before cutting material. CAD drafting and nesting software catch interference and clearance issues on screen, not on the shop floor.
- Estimate distortion risk for the full assembly sequence — weld order, symmetry, and plate thickness all factor in. Don't assume distortion will get corrected later.
- Validate with a prototype or small pilot run before scaling to full production. Small weld inefficiencies multiply fast across hundreds or thousands of parts.
Victory supports this entire sequence with CAD drafting, nesting software, and CNC plasma cutting that accepts DXF, SVG, and vector files, letting design issues surface digitally before any material gets cut.
Common DFM Mistakes That Drive Up Welding Costs
Three mistakes show up again and again in incoming drawings:
- Defaulting to full continuous welds or tight tolerances instead of specifying only what's structurally necessary, which adds unneeded labor and fixturing cost
- Designing joint geometry without checking physical access for a welder or torch, leading to rework or redesign once fabrication starts
- Ignoring heat distortion until production, when fixing an assembly sequence or plate thickness after tooling is set costs far more than catching it on paper
A 2005 AWS survey of shipyard welders found companies could save more than $3,200 per welder annually simply by reducing rework and scrap. Multiply that across a welding team, and the savings become substantial enough to justify a DFM review on every quote.
Partner With Victory Industrial Construction for DFM-Optimized Welded Assemblies
Getting DFM right requires a fabricator with the process range and tools to match technique to each joint's requirements.

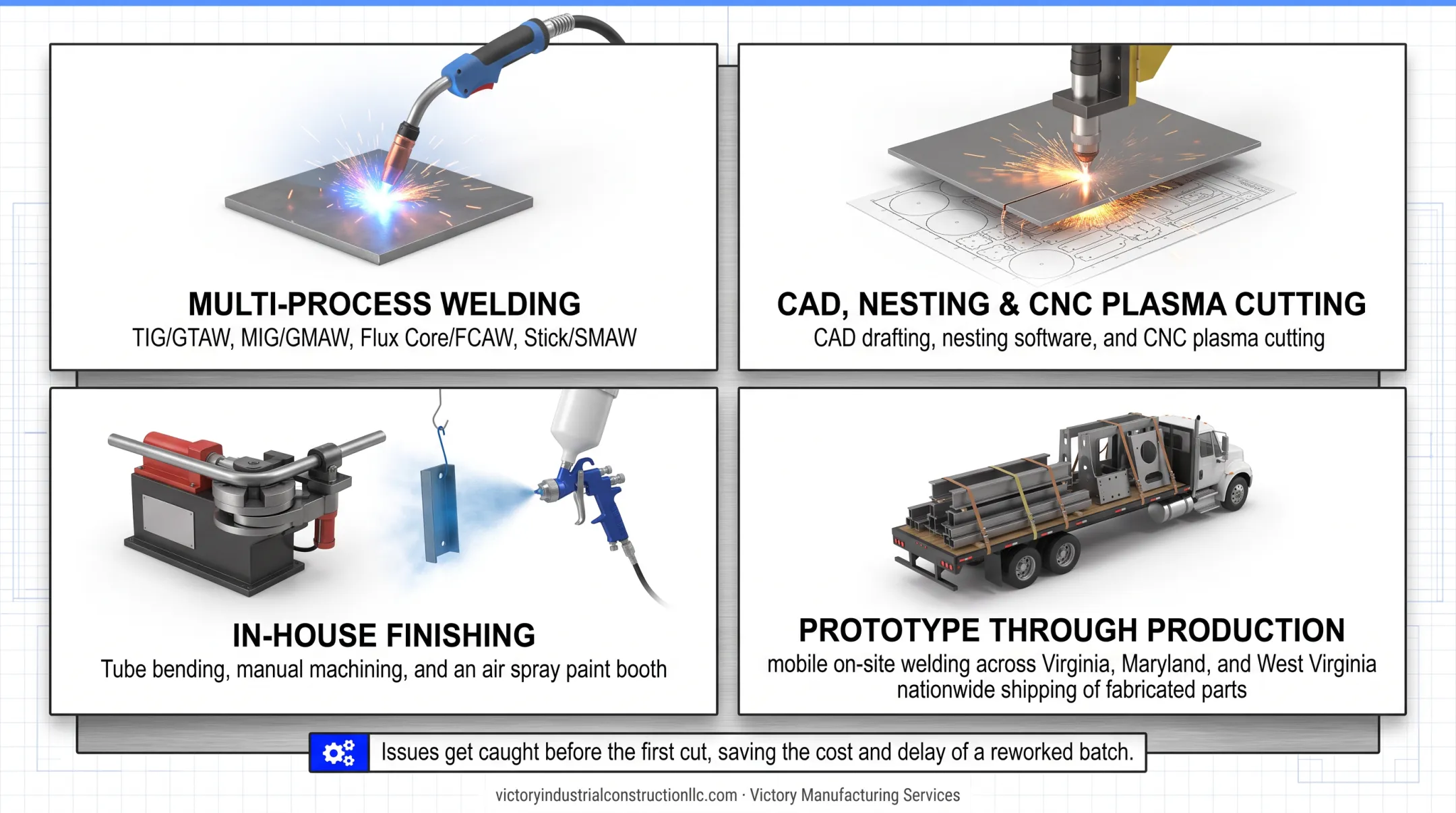

Victory Industrial Construction brings:
- Multi-process welding (TIG/GTAW, MIG/GMAW, Flux Core/FCAW, Stick/SMAW) so the right process gets matched to each joint's actual DFM requirements
- CAD drafting, nesting software, and CNC plasma cutting to catch manufacturability issues and optimize material use before fabrication begins
- Tube bending, manual machining, and an air spray paint booth in-house, keeping finishing and secondary operations under one roof
- Prototype-through-production support, plus mobile on-site welding across Virginia, Maryland, and West Virginia and nationwide shipping of fabricated parts
Whether you're refining a single prototype or scaling to a full production run, involving Victory during design review addresses manufacturability from the start. Issues get caught before the first cut, saving the cost and delay of a reworked batch.
