Introduction
Tighter project schedules and rising material costs leave less room for parts that don't fit right the first time. Add multi-part assemblies with dozens of mating components, and a dimensional miss of even 1/16 inch on one bracket can stall an entire installation.
Precision fabrication gets discussed mostly in terms of machinery and tolerance callouts on a drawing. But the real test happens on the assembly floor. Parts either drop into place, or someone reaches for a grinder.
This article breaks down why precision fabrication drives assembly accuracy, what it costs you when it's skipped, and how to get more value from the fabricators you already work with.
Key Takeaways
- CNC-driven cutting and forming reduce tolerance stack-up for first-time, correct fits
- CAD-to-cut workflows eliminate manual layout errors and misaligned holes
- Repeatable processes keep dimensions consistent across large production runs
- Skipping precision fabrication leads to rework, delays, and higher costs
- Full-service fabricators cut handoff errors across design, cutting, forming, and welding
What Is Precision Fabrication?
Precision fabrication is CNC- and CAD-driven manufacturing, covering cutting, forming, and welding, that produces components to tightly controlled dimensional tolerances specified on engineering drawings. It's a manufacturing method built around digital files instead of hand layout.
You'll find it applied to:
- Structural frames and weldments
- Sheet metal enclosures and panels
- Brackets and sub-assemblies
- Stairs, handrails, and safety structures
The goal is a part that drops into final assembly without adjustment. At Victory Industrial Construction, that means running CAD drafting, CNC plasma cutting, brake forming, and multi-process welding through one shop in Winchester, VA, across carbon steel, stainless steel, and aluminum.
The part that leaves the building matches the part that was drawn.
Key Advantages of Precision Fabrication for Assembly Accuracy
The advantages below tie to measurable assembly outcomes: fit-up time, rework rate, throughput, and cost per unit. Not abstract quality claims. Actual line-floor results.
Tighter Tolerances Through CNC-Driven Cutting and Forming
Manual torch cutting and hand-formed bending depend on the operator's steady hand and eye. CNC plasma cutting and CNC press brakes remove that variable by running from a programmed path every time.

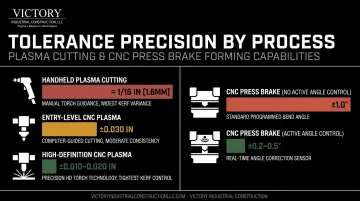

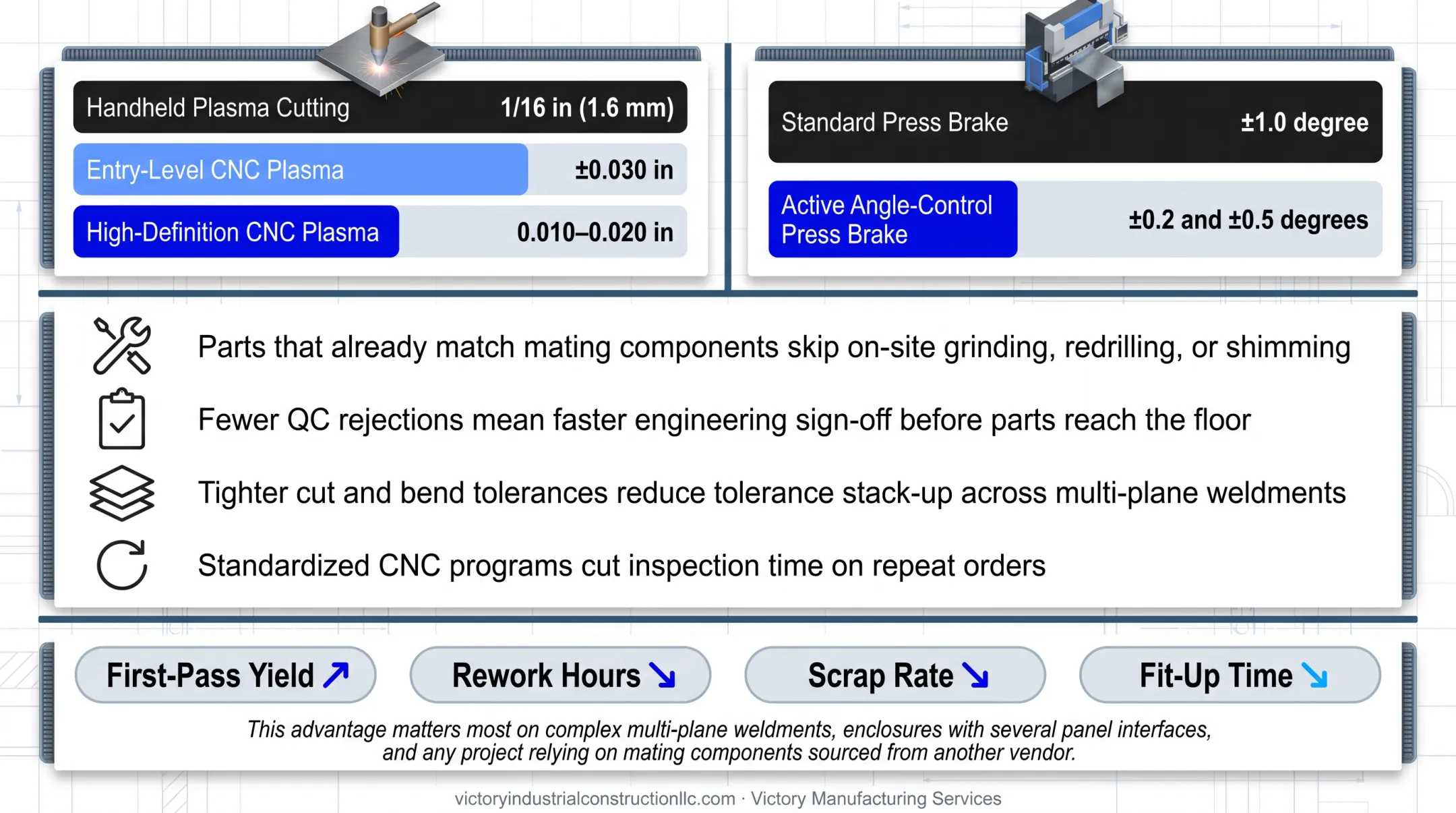

The tolerance gap is well documented. Hypertherm, a leading plasma cutting manufacturer, reports that handheld plasma cutting holds roughly 1/16 in (1.6 mm), while entry-level mechanized CNC plasma tightens that to about ±0.030 in, and high-definition mechanized systems hold 0.010–0.020 in under proper setup.
Press brakes show a similar pattern. Active angle-control systems reach tolerances between ±0.2 and ±0.5 degrees, compared to ±1.0 degree on systems without active monitoring. That gap matters once you're stacking multiple bends into a single part.
Why this matters for assembly:
- Parts that already match mating components skip on-site grinding, redrilling, or shimming
- Fewer QC rejections mean faster engineering sign-off before parts reach the floor
- Tighter cut and bend tolerances reduce tolerance stack-up across multi-plane weldments
- Standardized CNC programs cut inspection time on repeat orders
KPIs impacted: first-pass yield, rework hours, scrap rate, fit-up time.
This advantage matters most on complex multi-plane weldments, enclosures with several panel interfaces, and any project relying on mating components sourced from another vendor.
CAD-to-Fabrication Accuracy That Eliminates Guesswork
CAD drafting and nesting software translate engineering intent directly into cut files, using DXF, SVG, and vector formats, removing manual drawing interpretation on the shop floor. When a part is defined digitally, there's no soapstone line to misjudge and no tape measure reading to round off.
Prospect Steel, a structural steel fabricator, illustrates the shift well. Their prior process relied on experienced detailers using soapstone and tape for layout, a job that took hours per piece. After switching to a Tekla-model-to-robot workflow, the same job could start running within five minutes of exporting the model.
That five-minute turnaround marks a real process shift. Manual transcription left room for human misreads; a direct digital handoff removes that risk.
What CAD-driven workflows solve:
- Multiple parts destined for the same assembly share identical reference geometry, even across separate batches
- Mismatched hole patterns and bracket misalignment from hand-marked layouts disappear
- Engineering changes propagate to the cut file without a re-draw cycle
KPIs impacted: design-to-part accuracy, engineering change order cycle time, inspection pass rate.
This pays off most on custom one-off assemblies, prototype-to-production transitions, and jobs with strict compliance documentation.
Repeatability Across Batches and Multi-Part Assemblies
Tolerances mean little if part 1 and part 500 don't match. Consistent CNC setups, standardized welding sequences, and modular fixturing keep dimensional drift out of long production runs, including parts fabricated in one location and shipped elsewhere for assembly.
A documented case from fixture manufacturer Bluco puts numbers on this. A customer producing 3,500 energy-storage enclosures using a modular fixture and rail system held 1.7 mm across a 23-foot span.
The same process removed an average of 25 weld-labor hours per unit, with the best build cutting 34 hours. That's one vendor-reported result, not an industry average, but it shows what repeatable fixturing can accomplish at scale.
Why repeatability matters:
- Assembly teams stop fit-checking every unit individually, which speeds up the line
- New staff need less training when every part behaves the same way
- Labor planning gets more predictable, which matters when you're delegating assembly work
KPIs impacted: assembly cycle time, defect rate per batch, labor cost per unit, on-time delivery.
This advantage carries the most weight on multi-unit production runs: components fabricated at a single facility, like Victory Industrial Construction's Winchester, VA shop, then shipped nationwide for assembly without on-site correction.
What Happens When Precision Fabrication Is Missing or Ignored
Skip CNC- and CAD-driven precision, and the symptoms show up fast: inconsistent part fit that needs on-site grinding or shimming, higher rejection rates during assembly inspection, and reactive firefighting instead of planned production.
These problems compound. A single loose bracket is a minor annoyance. Ten loose brackets across a multi-part assembly are a schedule problem.
The failures rarely trace back to one bad part. They're usually the result of small, uncorrected variances accumulating across multiple components: tolerance stack-up in action.
Common downstream effects:
- Rising rework labor and wasted material
- Missed delivery dates that ripple into other project phases
- Difficulty scaling production or handing assembly off to less experienced crews
- Erosion of trust between design, fabrication, and field teams
Once tolerance stack-up sets in, correcting it after assembly costs far more than preventing it during fabrication—precisely where CNC- and CAD-driven precision earns its value.
How to Get the Most Value from Precision Fabrication
Precision fabrication pays off most when it's applied consistently, across every part in an assembly, not just the most visible or critical ones. One weak link in the fit chain undoes the accuracy built into everything else.

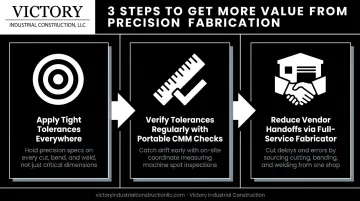

Practical steps to get more from it:

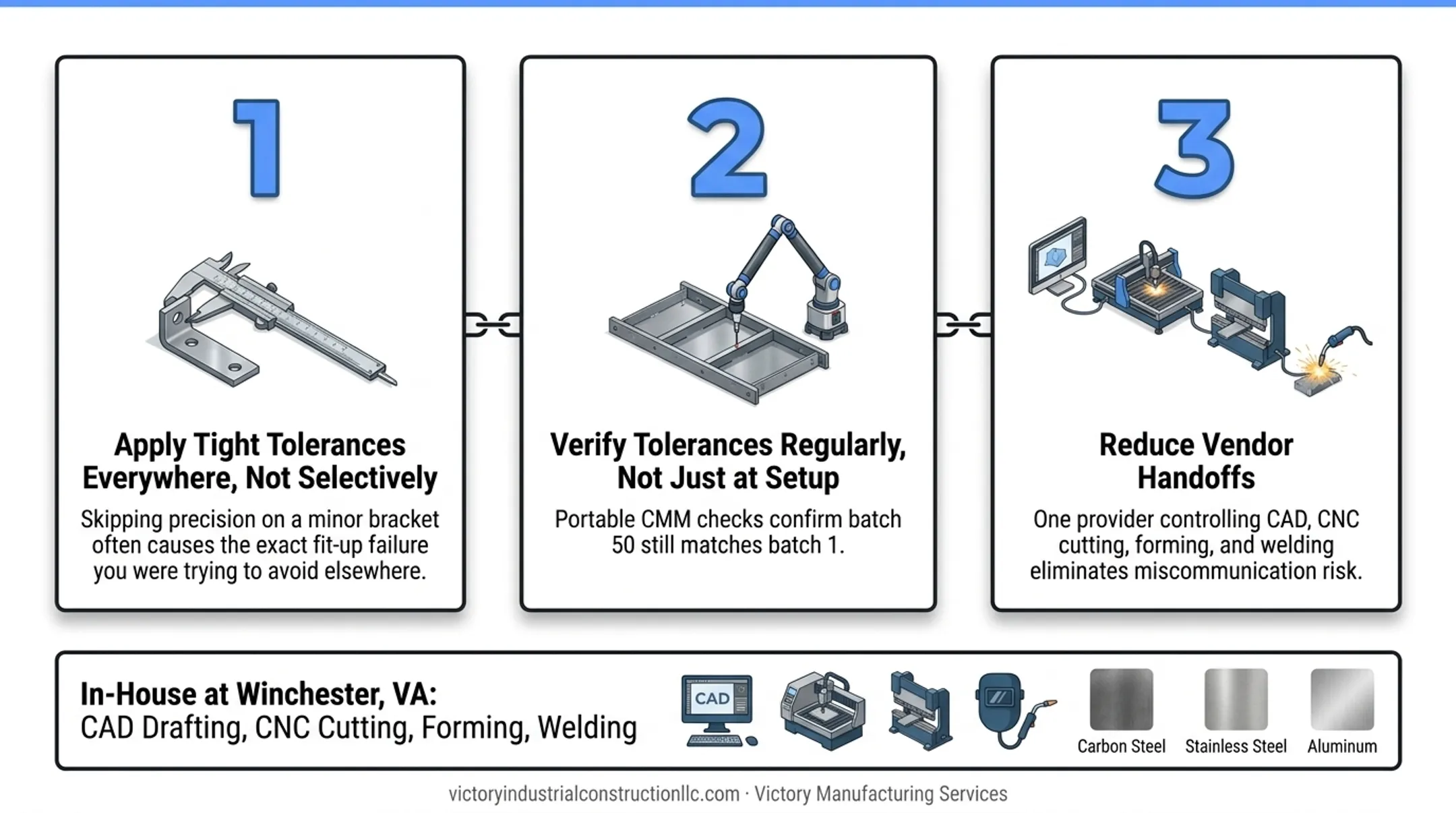

- Apply tight tolerances everywhere, not selectively. Skipping precision on a "minor" bracket often causes the exact fit-up failure you were trying to avoid elsewhere.
- Verify tolerances regularly, not just at setup. Portable CMM checks or equivalent inspection tools confirm that batch 50 still matches batch 1, since dimensional drift can creep in over long runs.
- Reduce vendor handoffs. A full-service provider that controls CAD drafting, CNC cutting, forming, and welding under one roof eliminates that risk. Miscommunication often creeps in when design, fabrication, and assembly sit with separate companies.
Victory Industrial Construction runs all four of these disciplines in-house at its Winchester, VA facility, across carbon steel, stainless steel, and aluminum. A part moves from CAD file to CNC cut to formed and welded component without changing hands between vendors. Fewer handoffs mean fewer chances for a spec to get lost in translation.
Conclusion
Precision fabrication's value comes from control and consistency across the full fabrication-to-assembly pipeline, not any single machine or process.
These advantages compound. Reduced rework and higher first-pass yield improve your margins more as production volume grows. A rework issue on 10 units is an inconvenience; the same issue on 5,000 units is a budget problem.
Treat precision fabrication as an ongoing practice, not a one-time equipment purchase. For Victory Industrial Construction, that means continued investment in CNC capability, CAD workflows, and inspection, the combination that keeps part 1 and part 500 fitting the same way.
Frequently Asked Questions
What's the difference between fabrication and assembly?
Fabrication is cutting, forming, and joining raw materials into individual components, while assembly combines those finished components into a final product or structure.
What is precision fabrication?
Precision fabrication uses CNC- and CAD-driven cutting, forming, and welding to produce components that meet the tightly controlled dimensional tolerances specified on engineering drawings.
What is a fabricated assembly?
A fabricated assembly is a multi-part structure built by combining individually fabricated pieces, cut, formed, and welded, into one functional unit.
How much tolerance is typical in precision fabrication?
It varies by process and material. Mechanized CNC plasma cutting typically holds ±0.010 to ±0.030 inches, while CNC press brakes with active angle control hold ±0.2 to ±0.5 degrees.
Can precision fabrication reduce assembly costs?
Yes, reduced rework, scrap, and fit-up labor from precision fabrication lowers per-unit assembly costs over time, especially on larger production runs.
What equipment is used for precision fabrication?
Common equipment includes CNC plasma cutters, CNC press brakes, multi-process welding setups (TIG, MIG, flux core, stick), tube benders, manual machining tools, and CAD/nesting software to plan cuts before material is touched.
