Introduction
A single broken part can shut down an entire production line. When that happens, the clock starts running, and every hour it keeps running gets expensive.
Reverse engineering can shrink that clock considerably, though most conversations about it start somewhere else entirely: as a design or R&D tool engineers use to develop new products.
For plant managers dealing with a cracked bearing housing at 2 a.m., its real value is different: it gets a facility back online without waiting on an OEM.
This article looks at how reverse engineering actually shortens repair cycles, cuts mean time to repair, and keeps aging equipment running when parts are no longer made.
Key Takeaways
- Recreates CAD models and parts directly from a physical component—no drawings needed
- Removes dependence on OEM lead times and slow overseas sourcing
- Keeps legacy and obsolete equipment running, avoiding forced capital replacement
- Root-cause redesign during rebuilds cuts repeat failures, not just repair time
What Is Reverse Engineering?
Reverse engineering is the process of measuring, scanning, or disassembling a physical part to recreate its design data, including dimensions, tolerances, and materials. Teams turn to this process when the original drawings are missing, outdated, or simply don't match the part in hand.
It's most commonly applied to:
- Worn or broken components on production equipment
- Structural steel assemblies with no as-built documentation
- Heavy machinery where the OEM has stopped supporting the model
- Legacy equipment running well past its original service life
Reverse engineering exists to get facilities back to running condition, often with reliability improvements built in along the way.
Key Advantages of Reverse Engineering for Reducing Downtime
The advantages below aren't theoretical. Each one ties to something maintenance and operations teams already track: repair speed, parts cost, and how often the same failure comes back.
Faster Turnaround on Replacement Parts
When a critical part fails, the standard OEM path often means submitting a request, waiting on a quote, then waiting again for manufacturing and shipping. Reverse engineering skips most of that. A fabrication team measures or scans the failed part and generates a usable CAD file in days, sometimes hours, instead of weeks.

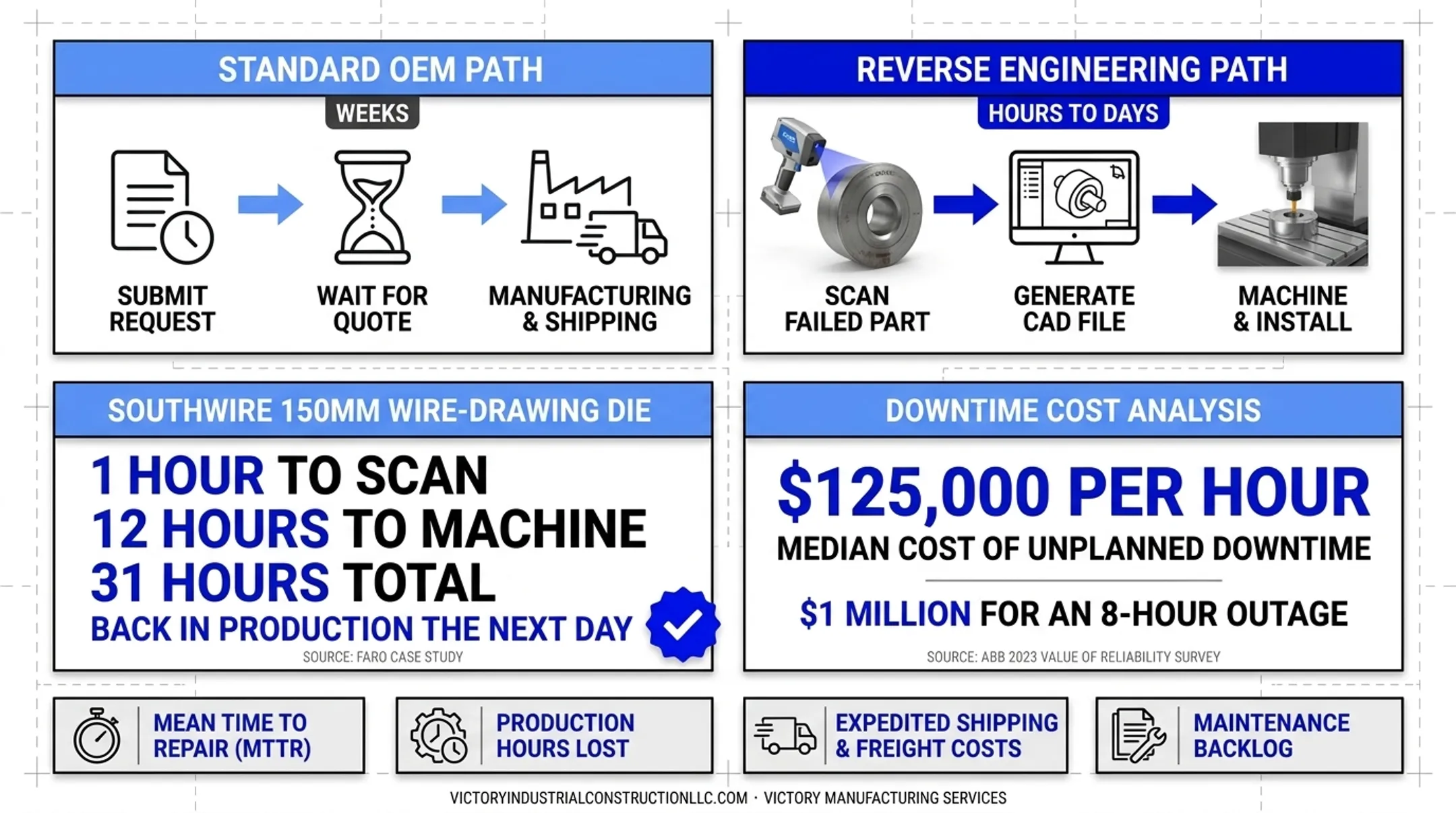

Southwire needed to replace a 150 mm wire-drawing die when the original machine installer wasn't available for months. The part was scanned in one hour and fully machined in about 12 hours.
The entire job, including a design revision, wrapped in roughly 31 hours, and the machine was back in production the next day, according to a FARO case study on 3D scanning for reverse engineering.
This kind of turnaround matters because downtime is expensive. Industrial businesses report a median cost of nearly $125,000 per hour for unplanned outages, according to ABB's 2023 Value of Reliability survey of over 3,200 plant-maintenance decision-makers. An eight-hour outage alone can approach $1 million.
This is where having fabrication capability under one roof pays off. Victory Industrial Construction's in-house CNC plasma cutting, CAD drafting, and nesting software let a shop move from measurement to a fabrication-ready file without shipping data between vendors, which is often where extra days get lost.
KPIs impacted:
- Mean time to repair (MTTR)
- Production hours lost
- Expedited shipping and freight costs
- Maintenance backlog
This advantage delivers the biggest payoff during unplanned failures on critical-path equipment, where every hour of downtime stops the entire line, not just one station.
Support for Obsolete and Discontinued Parts
Not every failed part has a live OEM on the other end of the phone. Manufacturers discontinue components, get acquired, or close entirely, and the equipment on your floor doesn't care.
Reverse engineering solves this by working from the physical part itself. A worn or broken component gets measured or scanned and converted into a CAD model and fabrication-ready file, completely independent of any OEM archive or supplier relationship.
The scale of this problem often surprises facility teams. According to the 2020 Plant Engineering/ATS Maintenance Study, aging equipment topped the list of causes for unscheduled downtime, cited in 34% of reported incidents. Older systems also tend to lack modern diagnostics, which stretches out troubleshooting time when something does go wrong.
Without reverse engineering, a single unavailable part can force a decision nobody wants to make: replace an otherwise functional machine just because one component can't be sourced.
KPIs impacted:
- Equipment lifespan
- Capital replacement costs
- Parts availability lead time
- Supplier dependency risk
The benefit is greatest for facilities running legacy machinery, custom-built equipment, or parts from suppliers that have exited the market entirely.
Design Improvements That Prevent Repeat Failures
Reverse engineering isn't limited to copying a part exactly as it wore out. It's also a chance to ask why it failed in the first place.
Engineers can compare a failed part's wear pattern against its original design intent, then correct weak points during the rebuild:
- Upgrading material grade where corrosion or fatigue was the culprit
- Adjusting thickness in high-stress zones
- Adding reinforcement where the original design fell short
Plant Engineering's 2020 study found that 8% of unscheduled downtime was attributed specifically to poor equipment design or engineering. That's a meaningful chunk of failures that a straight replacement part wouldn't fix, because it would just fail the same way again.
Fixing the root cause changes the trajectory. Instead of solving one breakdown, you're reducing how often that breakdown happens at all.
KPIs impacted:
- Failure recurrence rate
- Mean time between failures (MTBF)
- Total lifecycle maintenance spend
- Unplanned downtime frequency
The payoff is largest for parts with a documented history of repeat failure, or components running under consistently high stress or wear.
What Happens When Reverse Engineering Is Skipped
Facilities that rely solely on OEM parts or wait for original documentation tend to run into the same problems repeatedly:
- Extended downtime while waiting on OEM lead times or overseas shipping
- Repeat failures, because the underlying design flaw never gets addressed
- Forced equipment replacement, triggered by one obsolete part on an otherwise working machine
- Rising emergency costs, as rush fabrication and expedited freight become routine instead of exceptional
- Unpredictable maintenance planning, since parts availability is never guaranteed
Plant Engineering notes that late-stage problem recognition often forces complete component replacement rather than a targeted fix, driving up both cost and downtime. Facilities without a spare-parts strategy or a reverse engineering option end up managing crises instead of preventing them.
How to Get the Most Value from Reverse Engineering
Reverse engineering delivers the biggest downtime reduction when it's built into maintenance strategy, not just called in during a crisis.

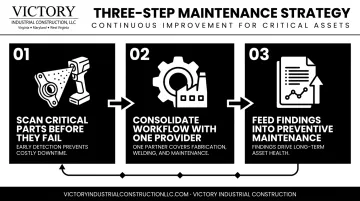

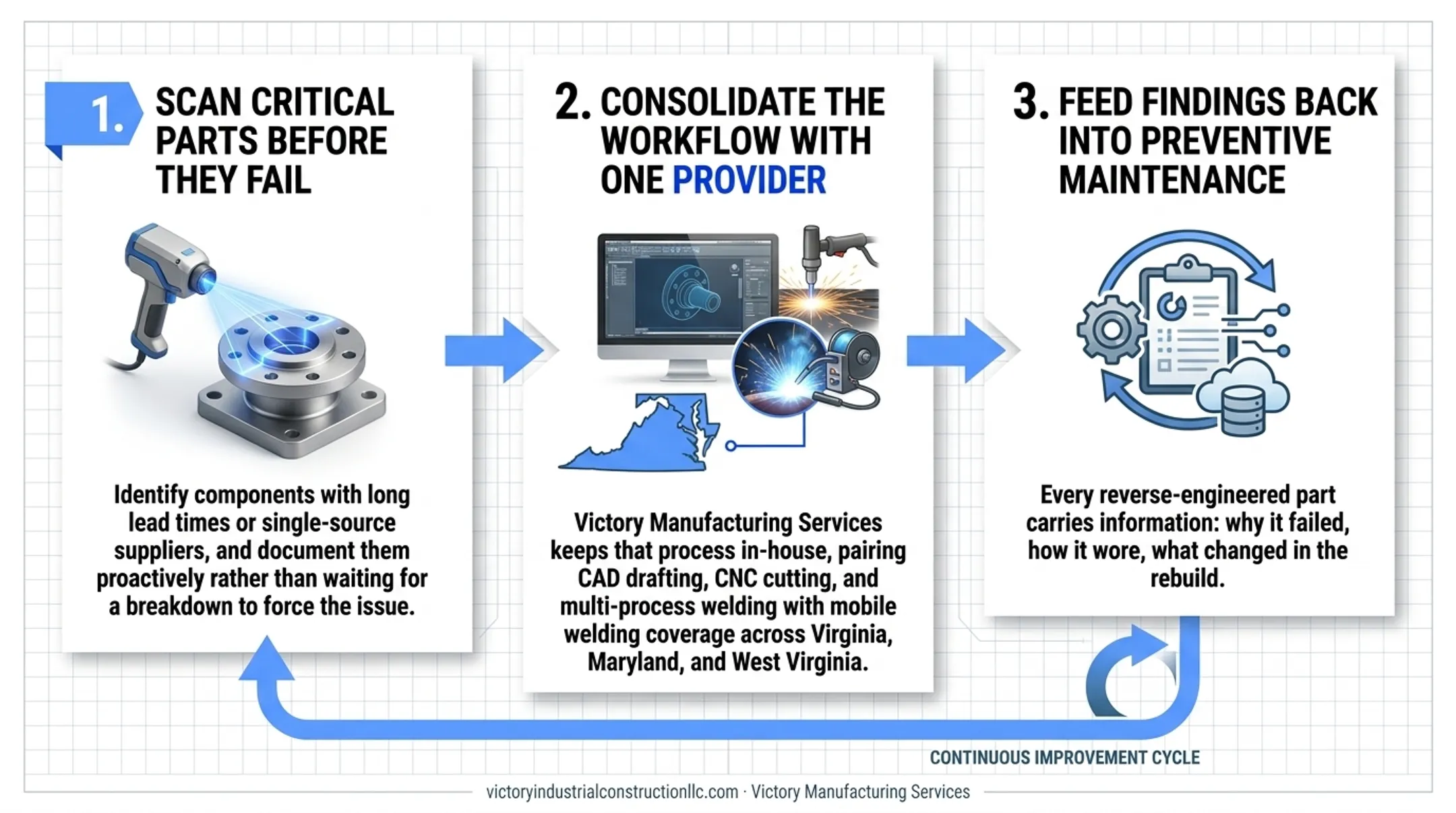

- Scan critical parts before they fail. Identify components with long lead times or single-source suppliers, and document them proactively rather than waiting for a breakdown to force the issue.
- Consolidate the workflow with one provider. Splitting scanning, redesign, and fabrication across multiple vendors adds shipping time and communication gaps at every handoff. Victory Industrial Construction keeps that process in-house, pairing CAD drafting, CNC cutting, and multi-process welding with mobile welding coverage across Virginia, Maryland, and West Virginia.
- Feed findings back into preventive maintenance. Every reverse-engineered part carries information: why it failed, how it wore, what changed in the rebuild. Documenting that turns a one-off repair into data that improves future maintenance planning.
Facilities that build these habits turn reverse engineering into a continuous improvement loop, catching failure patterns before they trigger unplanned downtime.
Conclusion
Reverse engineering reduces downtime through three things: speed, independence from unreliable supply chains, and the ability to fix design flaws instead of just replacing parts.
Those benefits compound. Every critical part digitized and documented before failure is one less emergency scramble later.
Treated as an ongoing part of a maintenance strategy rather than a one-time emergency fix, reverse engineering turns unpredictable breakdowns into a manageable, repeatable process—one that Victory Industrial Construction's CAD drafting and CNC fabrication team can help you build before the next failure hits.
Frequently Asked Questions
What are reverse engineering services?
Reverse engineering services involve measuring, scanning, or disassembling a physical part to recreate CAD models, technical drawings, and fabrication-ready files. Victory Industrial Construction provides this in-house when original documentation is lost, outdated, or unavailable.
How much does it cost to have something 3D scanned?
Cost depends on part size, geometric complexity, and the accuracy required for the rebuild. It's best to request a quote based on your specific component rather than relying on a general estimate.
Is reverse engineering illegal in the US?
Reverse engineering for repair, maintenance, or compatibility purposes is generally legal in the US. Recreating a patented design, rather than repairing an unpatented wear part, can raise infringement concerns.
How does reverse engineering reduce equipment downtime?
It shortens replacement part sourcing by recreating design data directly from the failed component, rather than waiting on OEM documentation, quoting, and shipping cycles. That can turn a multi-week wait into a matter of days.
Can reverse engineering replace obsolete or discontinued parts?
Yes. Physical measurement or scanning of a worn part allows fabrication of a replacement even when no OEM drawings, supplier, or manufacturer support still exists for that component.
How long does a typical reverse engineering project take?
Turnaround depends heavily on part complexity. Simple components can be measured and fabricated in days, while large structural assemblies requiring extensive redesign may take several weeks.
